10X 120i Plan APO Infinity Corrected Objectives

Name: 10X 120i Plan APO Infinity Corrected Objectives
SKU: 15-943
Price: £726.75 GBP

#15-943: 10X 120i Infinity Corrected Objective

Stock #15-943 Contact Us

- +

£726.75

Volume Pricing
Qty 1+	£726.75 each
Need More?	Request Quote

Prices shown are exclusive of VAT/local taxes

+ Add to Saved List
Create an account or log in to access saved list

Compare

Note: This item requires accessories for use | Learn More

Product Downloads

Specifications

General

Compatible Tube Lens Focal Length (mm):

Focal Length: 120mm

Type:

Microscope Objective

Style:

Infinity Corrected

Manufacturer:

Edmund Optics®

Physical & Mechanical Properties

Length (mm):

64.00

Length excluding Threads (mm):

64.00

Maximum Diameter (mm):

Weight (g):

130

Optical Properties

Horizontal Field of View, 1/2" Sensor:

0.64mm

Horizontal Field of View, 2/3" Sensor:

0.88mm

Horizontal Field of View, 1.1" Sensor:

1.41mm

Focal Length FL (mm):

12.00

Magnification:

10X

Numerical Aperture NA:

0.28

Resolving Power (μm):

1.0

Depth of Field (μm):

3.60

Working Distance (mm):

14.7

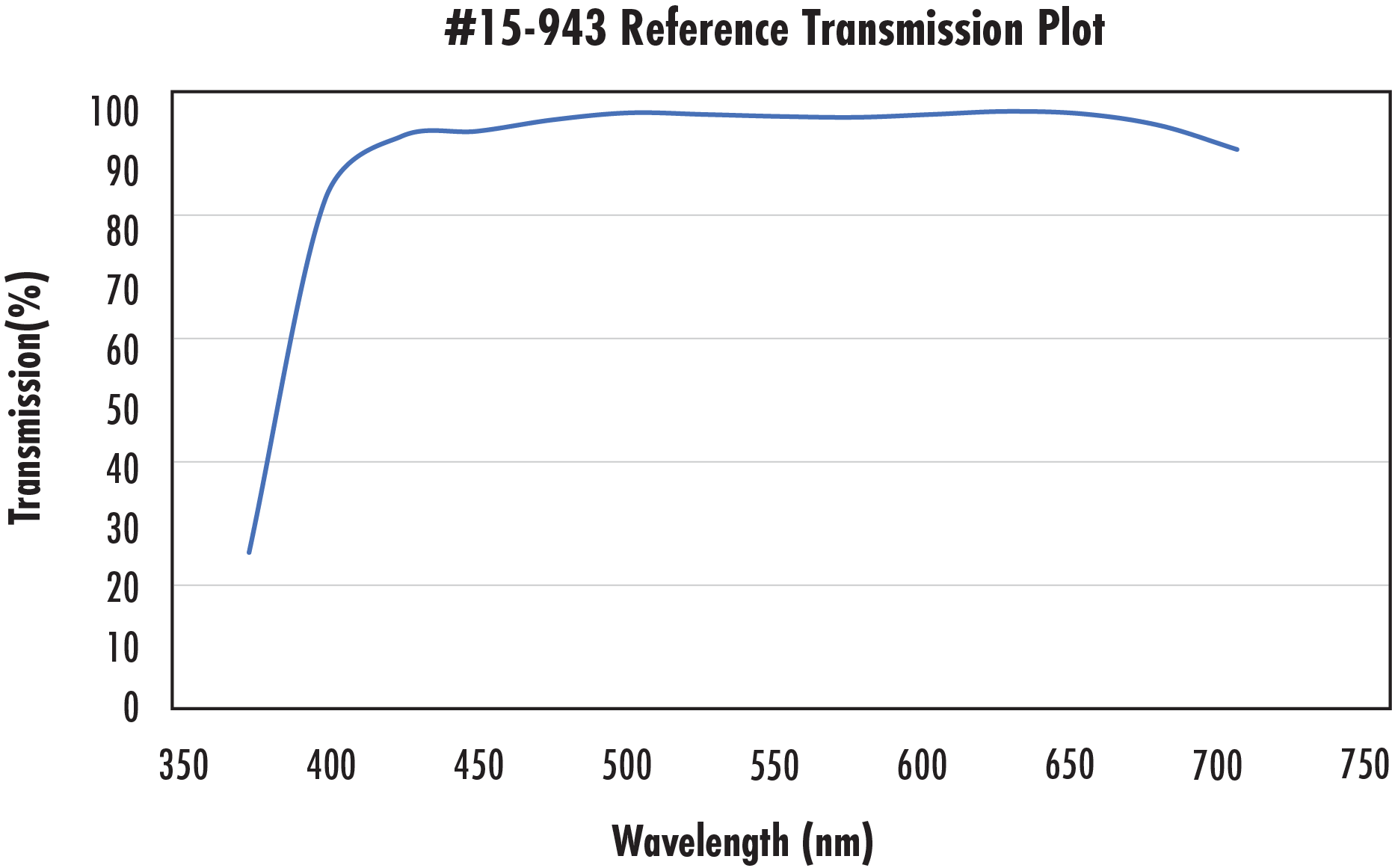

Wavelength Range (nm):

400 - 700

Field Number (mm):

17.6

Parfocal Length (mm):

78.7

Sensor

Maximum Sensor Format:

1.1"

Threading & Mounting

Mounting Threads:

1" x 32 TPI

Environmental & Durability Factors

Operating Temperature (°C):

+10 to +40

Regulatory Compliance

RoHS 2015:

Compliant

Certificate of Conformance:

View

Reach 240:

Contains SVHC(s)

Product Details

Up to 43% Smaller than Industry Standard Systems
Optimized Performance up to 1.1” Sensor
Ideal for Life Science and Industrial Applications
Winner of the 2023 Bronze VSD Innovators Award

Edmund Optics® 120i Plan APO Infinity Corrected Objectives are infinite conjugate microscope objectives that offer exception image flatness and chromatic correction over 400-700nm. These objectives were designed for a 1.1” sensor to offer a large field of view and reliable image quality for high-throughput imaging applications. Ideal for life science and machine vision applications such as microscopy, flow cytometry, pharmaceutical inspection, and assembly line or fault inspection.

These objectives won the 2023 Bronze VSD Innovators Award.
